電動球閥q941f-25c dn80使用說明書和實物圖,可就地可遠程PLC控制電動法蘭球閥不僅結構簡單、密封性能好,而且在一定的公稱通徑范圍內體積較小、重量輕、材料耗用少、安裝尺寸小,并且驅動力矩小,操作簡便、易實現功能, Q941F電動法蘭球閥概述 電動球閥具有以下特點:適用于切斷、調節的場合。湖泉電動法蘭球閥可實現對石油、化工、造紙、冶金、污水處理等運輸管道內介質的切斷和流通。密封性能優良、流通等,電動球閥Q941F-25C DN80鑄鋼法蘭球閥簡介: 球閥被廣泛的應用在石油煉制、長輸管線、化工、造紙、制藥、水利、電力、市政、鋼鐵等行業,.產品名稱:q941f電動球閥 產品型號:q941f 產品特點:q941型電動球閥適用于兩位切斷、調節的場合。
Q941F-10C DN32,Q941F-10C DN40,Q941F-10C DN50,Q941F-10C DN65,
Q941F-10C DN80,Q941F-10C DN100,Q941F-10C DN125,Q941F-10C DN150,
Q941F-10C DN200,Q941F-10C DN250,Q941F-10C DN300,Q941F-10C DN350,
Q941F-10C DN400,Q941F-10C DN450,Q941F-10C DN500,Q941F-10C DN600,
Q941F-10C DN700,Q941F-10C DN800,Q941F-10C DN900 Q941F-10C DN1000,
Q941F-16C DN32,Q941F-16C DN40,Q941F-16C DN50,Q941F-16C DN65,
Q941F-16C DN80,Q941F-16C DN100,Q941F-16C DN125,Q941F-16C DN150,
Q941F-16C DN200,Q941F-16C DN250,Q941F-16C DN300,Q941F-16C DN350,
Q941F-16C DN400,Q941F-16C DN450,Q941F-16C DN500,Q941F-16C DN600,
Q941F-16C DN700,Q941F-16C DN800,Q941F-16C DN900,Q941F-16C DN1000,
Q941F-25C DN32,Q941F-25C DN40,Q941F-25C DN50,Q941F-25C DN65,
Q941F-25C DN80,Q941F-25C DN100,Q941F-25C DN125,Q941F-25C DN150,
Q941F-25C DN200,Q941F-25C DN250,Q941F-25C DN300,Q941F-25C DN350,
Q941F-25C DN400, Q941F-25C DN450,Q941F-25C DN500,Q941F-25C DN600,
Q941F-25C DN700,Q941F-25C DN800,Q941F-25C DN900,Q941F-25C DN1000,
Q941F-40C DN32,Q941F-40C DN40, Q941F-40C DN50,Q941F-40C DN65,
Q941F-40C DN80,Q941F-40C DN100,Q941F-40C DN125,Q941F-40C DN150,
Q941F-40C DN200,Q941F-40C DN250,Q941F-40C DN300,Q941F-40C DN350,
Q941F-40C DN400,Q941F-40C DN450,Q941F-40C DN500,Q941F-40C DN600,
Q941F-40C DN700,Q941F-40C DN800,Q941F-40C DN900, Q941F-40C DN1000,
Q941F-64C DN32,Q941F-64C DN40,Q941F-64C DN50,Q941F-64C DN65,
Q941F-64C DN80,Q941F-64C DN100,Q941F-64C DN125,Q941F-64C DN150,
Q941F-64C DN200,Q941F-64C DN250,Q941F-64C DN300,Q941F-64C DN350,
Q941F-64C DN400,Q941F-64C DN450,Q941F-64C DN500,Q941F-64C DN600,
Q941F-64C DN700,Q941F-64C DN800,Q941F-64C DN900,Q941F-64C DN1000
S型:標準型
功能:通過開關電路實現開啟、關閉操作,并輸出一組有源位置信號(全開、全閉)。
W型:無源觸點型
功能:通過開關電路實現開啟、關閉操作,并輸出一組指示閥門全開、全閉位置無源開關信號。
結構:帶兩個中間位置開關。
P型:開度信號型
功能:通過開關電路控制閥門開啟角度,并輸出與開度位置對應的電阻信號。
結構:帶500Ω或1000Ω電位器。
A型:智能調節型
功能:調節作用,輸入4~20mADC或1~5VDC,輸出4~20mADC
結構:帶伺服控制器和1KΩ電位器。
H型:帶電位器和中間位置開關
功能:通過開關電路控制閥門開啟角度,輸出與開度位置對應的電阻信號,同時輸出一組無源位置信號。
結構:帶電位器和中間位置開關。
Z型:直流控制電路
功能:通過外部電路對直流電源正負極換向,實現開啟、關閉操作并輸出一組無源觸點(全開、全閉)信號
結構:帶中間位置開關
J型:AC380V控制電路
功能:通過外部倒相電路,使電機正反轉實現開啟、關閉操作并輸出一組無源觸點(全開、全閉)信號
結構:帶中間位置開關

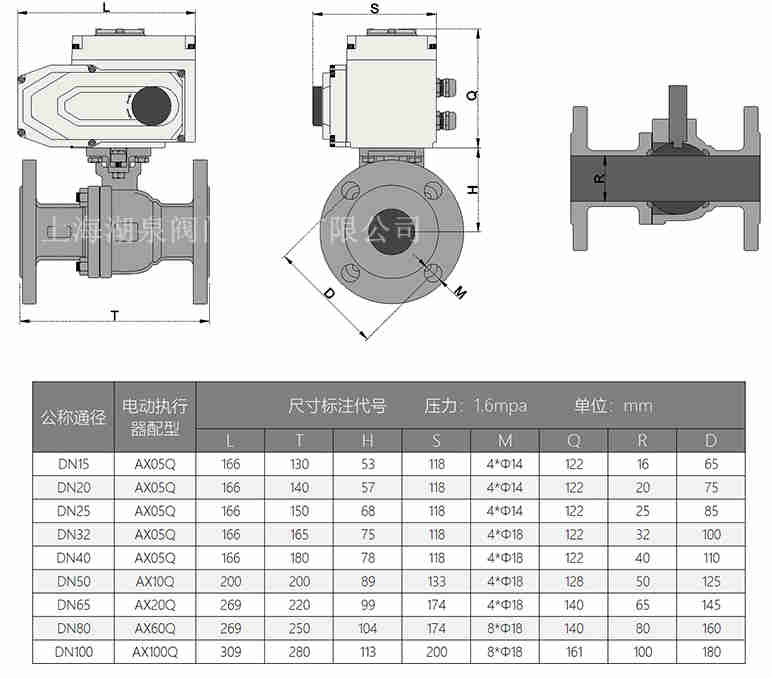

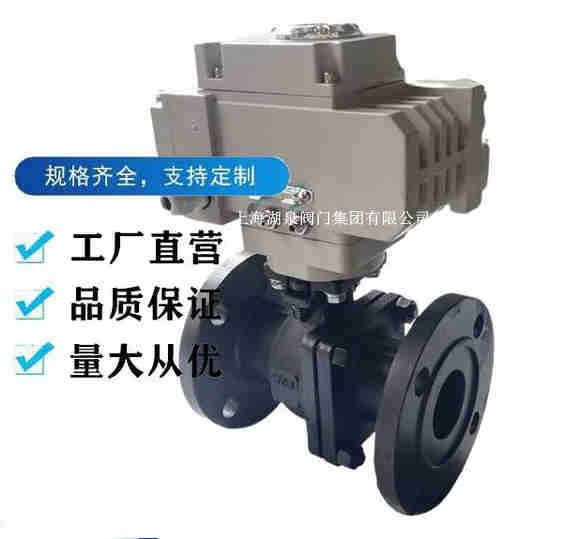

電動球閥q941f-25c dn80使用說明書和實物圖
公稱通徑mm |
15 |
20 |
25 |
32 |
40 |
50 |
80 |
100 |
額定流量系數Kv |
20 |
38 |
72 |
110 |
170 |
270 |
510 |
940 |
公稱壓力MPa |
1.0;1.6;6.4 |
額定轉角° |
0~90 |
流量特性 |
快開 |
介質溫度℃ |
-20~120 |
閥體材質 |
HT200;ZG230-450;ZG1Cr18Ni9Ti;ZG0Cr18Ni12Mo2Ti |
球體材質 |
1Cr18Ni9;0Cr18Ni12Mo2Ti |
電動球閥q941f-25c dn80使用說明書和實物圖
零件名稱 |
閥體、側體 |
球體、閥桿 |
填料 |
密封圈 |
Q941F-16C
Q941F-25C
Q941F-40C |
WCB |
2Cr13 |
聚四氟乙烯或
柔性石墨 |
聚四氟乙烯、增強聚四氟乙烯、對位聚苯 |
Q941F-16P
Q941F-25P
Q941F-40P |
ZG1Cr18Ni9Ti |
1Cr18Ni9Ti |
Q941F-16R
Q941F-25R
Q941F-40R |
ZG0Cr18Ni12Mo2Ti |
0Cr18Ni12Mo2 |
